The modern pharmaceutical pipeline is rich in highly potent, highly specific New Chemical Entities (NCEs). Yet, approximately 70% to 90% of new chemical entities and up to 40% of marketed drugs fall within BCS Class II or IV, reflecting the widespread challenge of poor aqueous solubility.
When a molecule crosses your desk as a “brick dust” (high melting point, $T_m > 200\,^\circ\text{C}$) or a “grease ball” (high lipophilicity, $\log P > 5$), achieving optimal bioavailability becomes a primary formulation hurdle.
Traditional trial-and-error approaches no longer suffice in early-stage development. When optimizing solubility and bioavailability enhancement, formulation scientists face a critical crossroad. f
Should you pursue chemical modifications, particle engineering, or complex carrier matrices? This article provides a high-level roadmap to help R&D teams evaluate these paths systematically without getting bogged down in single-technology tunnel vision.

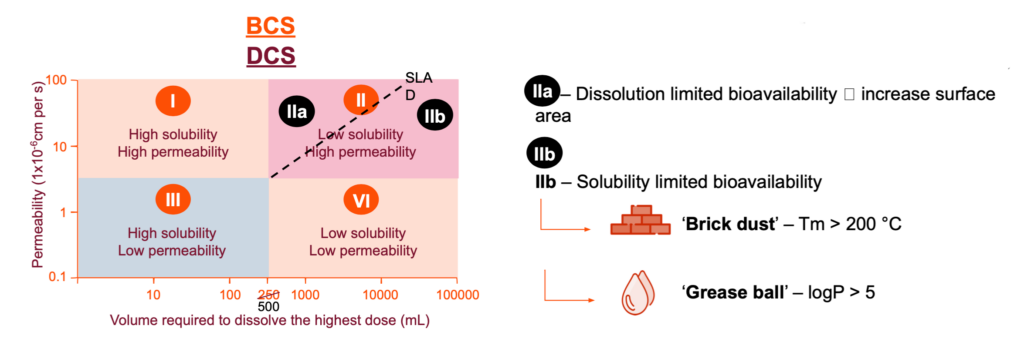

The Nature of the Challenge: BCS Class II and IV Realities
Oral drug absorption depends heavily on dissolution rate and intestinal permeability. BCS Class II compounds feature high permeability but low solubility, meaning dissolution is the rate-limiting step for absorption. Conversely, Class IV compounds struggle with both low solubility and low permeability.
When evaluating poor solubility, physiochemical characterization is the mandatory first step. Solubilization itself is a thermodynamic process involving three key steps: disrupting the crystal lattice (endothermic, $\Delta G +$), cavitation of the solvent (endothermic, $\Delta G +$), and solvation or hydration of the drug molecules (exothermic, $\Delta G -$). For poorly soluble compounds, the energy required to break the crystal lattice dwarfs the hydration energy yield.

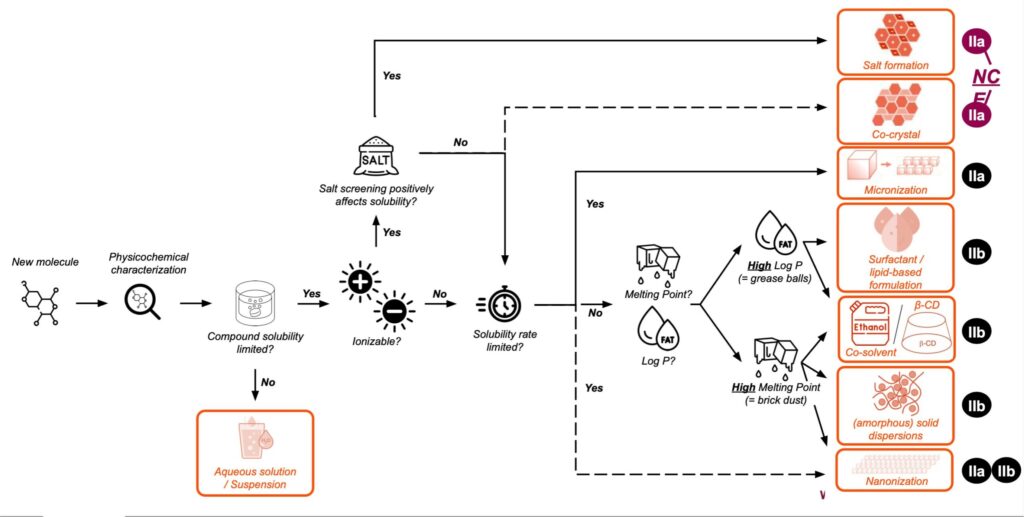

A Strategic Roadmap to Enhance Bioavailability: From Salts to Enabling Technologies
Rather than viewing salt formation, nanosuspensions, amorphous solid dispersions, and lipid formulations as competing technologies, experienced formulation teams treat them as decision points within a structured development roadmap. Early physicochemical characterization—including ionizability, dissolution rate limitation, melting point, and lipophilicity—helps determine which enabling strategy is most likely to succeed.
Parallel screening enables formulation teams to identify the most promising development path early while reducing the risk of pursuing suboptimal technologies.
1. Salt Formation and Co-Crystals
For ionizable molecules, salt screening is often the most powerful and relatively simple way to overcome poor performance. Selecting the correct counter-ion can drastically alter pH-solubility profiles, and salt or co-crystal selection can even enable new intellectual property (NCE protection). However, formulators must watch out for challenges like salt disproportionation driven by micro-environmental pH changes and relative humidity.
2. Particle Size Reduction
If salt formation is non-viable, reducing particle size increases the specific surface area, thereby accelerating the dissolution rate according to the Noyes-Whitney equation. Traditional micronization is widely used, but when extreme surface area is required, creating a nanosuspension can be the simplest and most effective solution. Utilizing wet media milling yields colloidal dispersions stabilized by polymers or surfactants to prevent agglomeration and Ostwald ripening.
3. Amorphous Solid Dispersions (ASDs)
When particle size reduction is insufficient for high-dose, low-solubility compounds, formulators turn to amorphous solid dispersions (ASDs). By molecularly dispersing the active pharmaceutical ingredient into a polymer matrix, the system bypasses the stable crystal lattice entirely, possessing high free energy that significantly drives up apparent solubility.

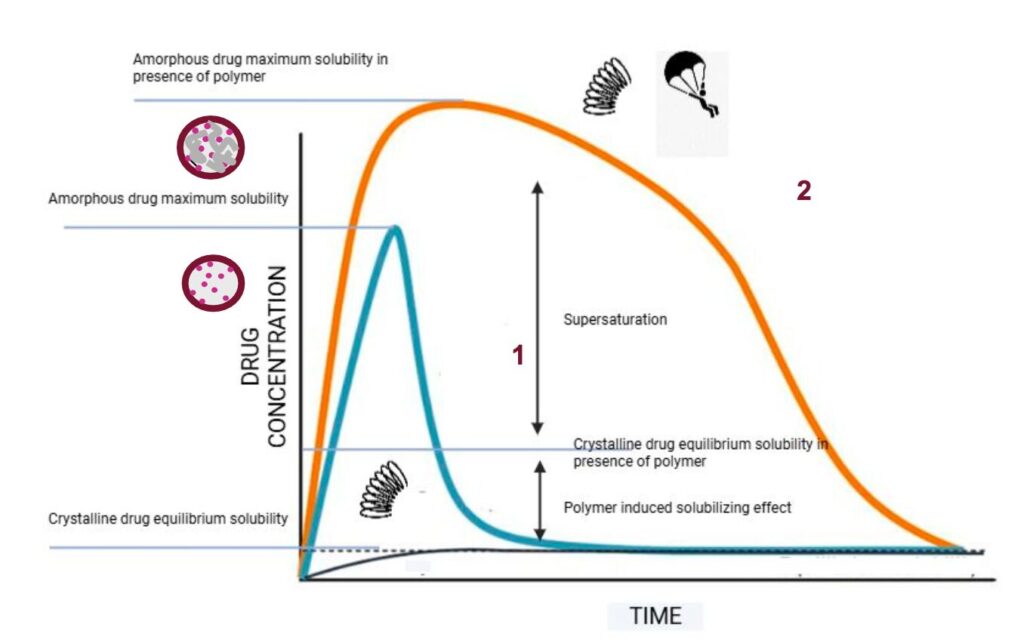

The success of an ASD relies heavily on two kinetic phenomena: the spring effect, where the amorphous form generates rapid supersaturation well above the crystalline equilibrium solubility, and the parachute effect, where polymers inhibit rapid recrystallization in gastrointestinal fluids. Depending on thermal stability, processability, drug–polymer compatibility, and overall product quality, teams choose between fusion methods like Hot-Melt Extrusion (HME) or solvent evaporation techniques such as spray drying.
Key Takeaway: Whether you utilize lipid-based formulations, crystalline nanosuspensions, or amorphous solid dispersions (ASDs), success ultimately depends on maintaining the formulation’s intended physical state and stability throughout manufacturing, shelf-life, and in vivo transit.

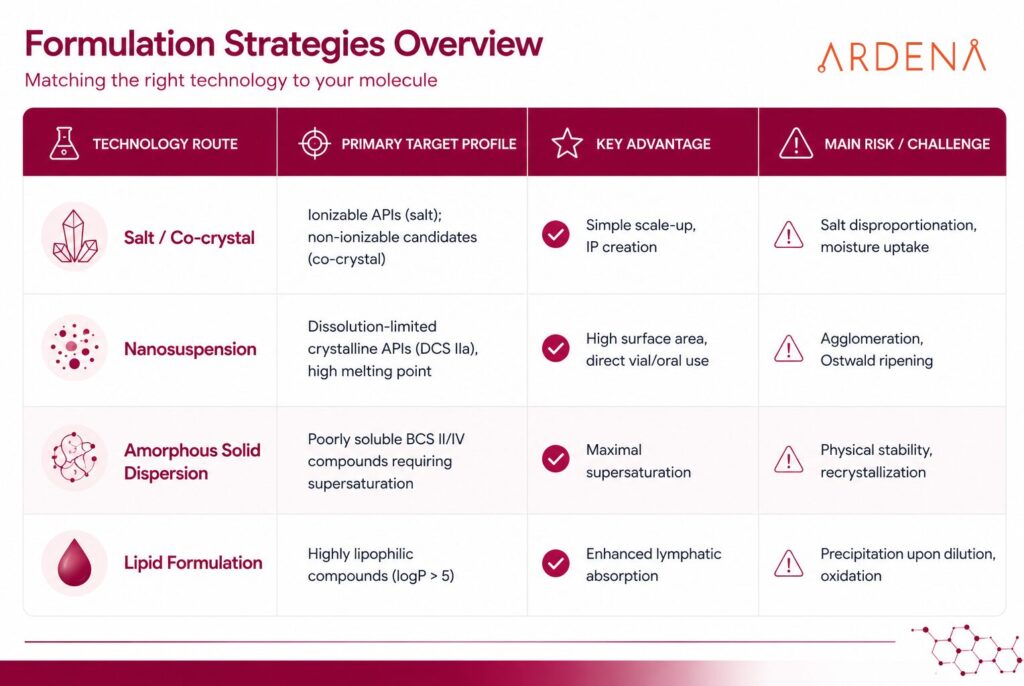

Parallel Screening: Choosing the Right Formulation Strategy
Because no single technology fits all molecules, an effective development strategy advocates for a parallel screening philosophy. By evaluating salt feasibility, lipid compatibility, and amorphous stability simultaneously during early pre-formulation, development teams de-risk the program early.
Conclusion
Overcoming poor bioavailability is rarely about finding a single “magic bullet” technology. It requires an integrated, science-driven roadmap that evaluates physicochemical properties, anticipates physical stability risks, and matches the API to the optimal enabling technology early in the development lifecycle.
